Screws for Fairphone 1, FP2, FP3, FP4, FP5, FP6

[urs_lesse]

As we haven’t got a Fairphone Support article about this longstanding issue, I have cobbled together the little that is known. If you can add information, please do so, but always cite a source and make your links as precise as possible.

Model	Driver(s)	Length(s)	Diameter	Sources
FP1	Phillips #000	3.9 mm / 2.5 mm	?	iFixit (steps 7 & 17)
FP2	Phillips #0	5.5 mm	1.4 mm	iFixit (step 6), Forum
FP3	Phillips #00	3.8-4.0 mm and 4.1 on modules	1.4 mm	iFixit (step 5), Forum, Forum Fairphone 3 Vervanging van de bovenste module - iFixit reparatiehandleiding
FP4	Phillips #00	4.5 mm	1.4 mm	Forum
FP5	Phillips #00			iFixit
FP6	Torx T5			Fairphone Support instructions

For potential sources (where to buy), see:

I have repair my FP2 and lost a screw. Where can I buy one? The shop dont offer this

thanks for the offer. I have now in the Internet (minischrauben.com) which bought.

FP4 Replacement Screws

According to a tweet found by @urs_lesse, FP support will not provide replacement screws. I ordered some screws for the FP3 and one set also contains M1.4x3.5mmm what would be the size oft the FP4 screws. However, the measurement of the screws seem a bit odd, because the indicated lenght seem to be the total lenght and not the thread only (further info here). As I have no FP4 and nothing to properly measure those mini screes, is there anyone with an FP4 who would be willing to test the screws t…

In the Fairphone Shop:

Fairphone   screws screwdriver Phillips #00
Fairphone   screws screwdriver Torx T5

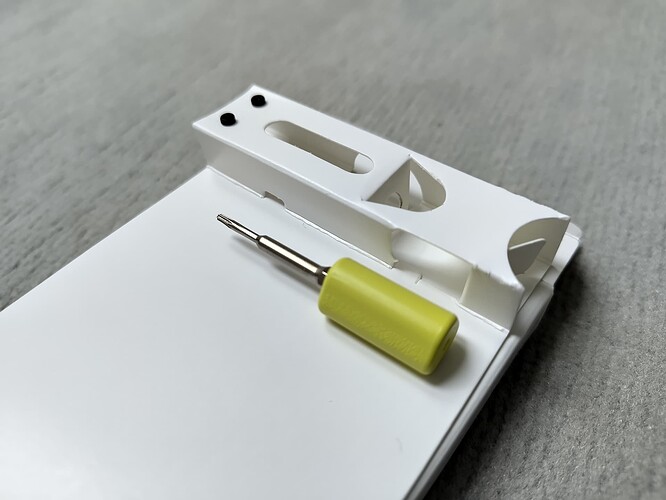

The FP6 card holder, lanyard and finger loop each already ship with a Torx T5 screwdriver stub included in the box (as well as two Torx T5 screws that can ONLY replace the two externally visible, longer screws).
